Quick Answer:
Your MIG welds aren’t penetrating because your voltage is too low, wire feed speed is too high, your travel speed is too fast, or your workpiece isn’t properly cleaned or prepped. To fix poor penetration, increase voltage, balance your wire speed, slow down, improve joint prep, and set the correct shielding gas and stick-out.

Why MIG Welds Don’t Penetrate Enough (Real Causes)

If your bead is just sitting on top with no fusion, here are the most common reasons:

Voltage too low → arc is weak
Wire feed speed too high → arc gets snuffed out
Travel speed too fast → no time to dig in
Stick-out too long → reduces heat
Wrong gas mixture (CO₂/Argon)
Dirty metal → contaminants block heat
Poor joint prep → thick metal needs beveling
Using the wrong wire size

Most of the time, fixing just voltage + wire speed solves everything.

Step-by-Step Fixes for Poor MIG Penetration

1. Increase Your Voltage

Voltage = heat.
If your weld won’t dig in, bump voltage up 0.5–1.0 volts at a time until the arc sounds crisp.

Signs voltage is too low:

Cold, wide bead
No fusion at the toes
Sits on top like a blob

2. Adjust Wire Feed Speed (WFS)

Wire feed controls metal deposition—not heat.
Too high = wire piles up
Too low = arc is unstable

Goal: Match the WFS to the voltage.

Start with chart settings and adjust from there.

3. Slow Your Travel Speed

If you’re moving too fast, the heat never has time to penetrate.

Fix:

Slow down until you see a solid keyhole forming
Keep a steady pace, not a “stop-and-go” rhythm

4. Shorten Your Stick-Out

For MIG, stick-out should be:

⅜”–½” for solid wire
¾” for flux-core

Too long of a stick-out cools the arc and kills penetration.

5. Clean the Metal Better

Even small bits of rust, paint, oil, or mill scale reduce penetration.

Clean at least 1 inch around the weld using:

Flap disc
Wire wheel
Grinder

Dirty metal = cold weld every time.

6. Prep the Joint for Thicker Material

Anything over ⅛” usually needs at least a slight bevel.

For strong penetration:

¼” steel → bevel 30–45°
Leave a small root gap
Root pass first, then fill

No bevel = no chance of proper penetration.

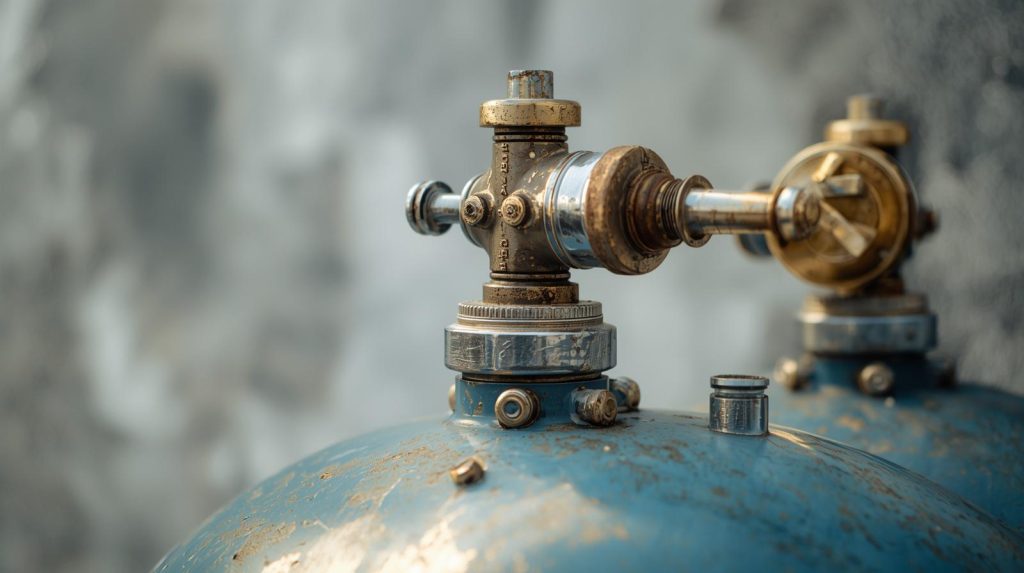

7. Use the Right Gas Mix

For deep penetration, use:

75/25 Argon-CO₂ (standard MIG mix)
100% CO₂ (deepest penetration, but spatter increases)

If you’re using 100% Argon by mistake → your weld WILL not penetrate.

8. Use the Right Wire Size

Good rule:

.030 wire = general use, decent penetration
.035 wire = thicker steel, hotter arc
.023 wire = thin sheet metal only

If you’re welding ¼” steel with .023 wire → it’ll never penetrate.

Common Mistakes Causing Poor MIG Penetration

Welding with too low voltage
Using too much wire speed
Welding dirty or painted metal
Holding a long stick-out
Moving too fast
Using wrong polarity (should be DCEP for MIG)
Not beveling thick steel
Using wrong shielding gas
Using old, rusty, or cheap wire

These are beginner mistakes, and every welder has made them at some point.

Tools Needed to Fix MIG Penetration Problems

MIG welder with adjustable voltage & WFS
Grinder or flap disc for cleaning metal
Wire brush
Welding pliers
Correct-sized contact tips
Shielding gas (75/25 or CO₂)
Proper wire (.030 or .035 for most work)

Optional (but very helpful):

Angle grinder for beveling
Calipers (to measure thickness)
Anti-spatter spray

What Proper MIG Penetration Looks Like

A good penetrating weld has:

A visible tie-in at the toes
A slightly crowned bead—not flat, not piled
A uniform sound (“steady sizzle”)
A backside heat mark (on thinner metal)

If your weld breaks off cleanly from the base metal → no penetration.

FAQ: MIG Weld Penetration Problems

1. Why do my MIG welds sit on top of the metal?

Your voltage is too low or your wire speed is too high. Increase heat and slow down.

2. Will 110v MIG welders penetrate thick steel?

Up to about ⅛” with proper prep. For ¼”, you need beveling and multiple passes.

3. Should I push or pull for better penetration?

For MIG:

Push = wider, cleaner bead
Pull = deeper penetration

For max penetration → pull/drag.

4. Why is my weld not penetrating on thicker steel?

You likely need:

More voltage
A bevel
Slower travel
Higher wire speed (when matched with voltage)

5. Does stick-out really affect penetration?

Yes—long stick-out weakens the arc and cools the weld.

Final Thoughts

If your MIG welds aren’t penetrating enough, the fix usually comes down to more heat, better prep, and slower travel.

Just remember the simple formula:

Voltage = heat
Wire speed = filler
Stick-out = consistency
Prep = success

Dial those in, and your MIG welds will start digging in like they should.
